Project Outline

This project involved renovating a galvanized steel swimming pool at the Lake Park Plaza Condominiums in Chicago. Completed in 2014, the work addressed a failing interior that had been previously compromised by ineffective maintenance methods.

Lake Park Plaza
Lake Park Plaza
Lake Park Plaza

Project Specifications:

Lake Park Plaza
Lake Park Plaza
Lake Park Plaza
Lake Park Plaza

Challenges Solved

  • Failed Masking Solutions:  A delaminating fiberglass liner had been installed over pool paint; because composite materials do not adhere to paint, the liner had released and was no longer providing protection.

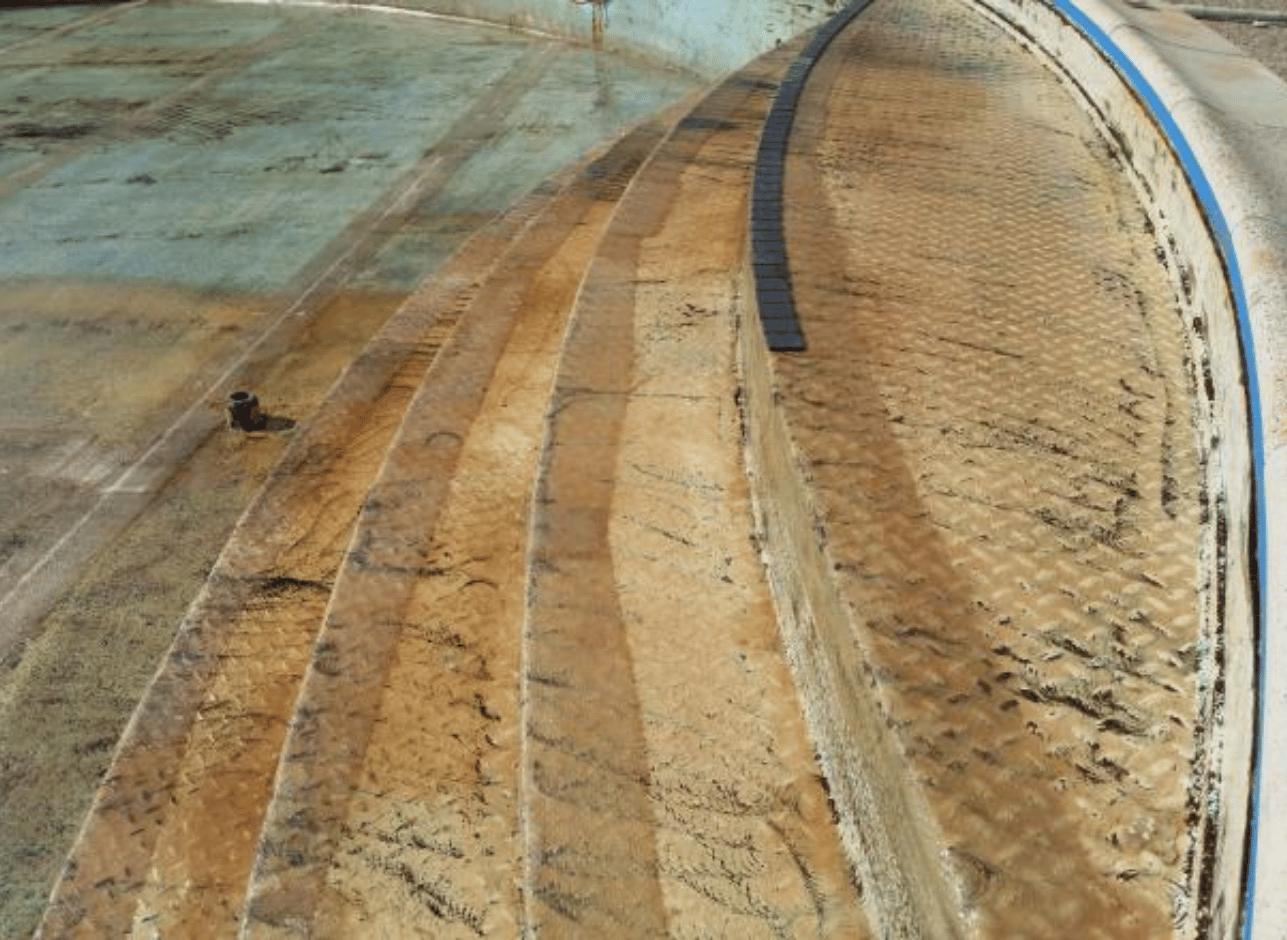

  • Active Metal Corrosion:  Upon removing the old finish, the team discovered residues and degradation where the original zinc-and-iron protective coating had worn through to the raw metal.

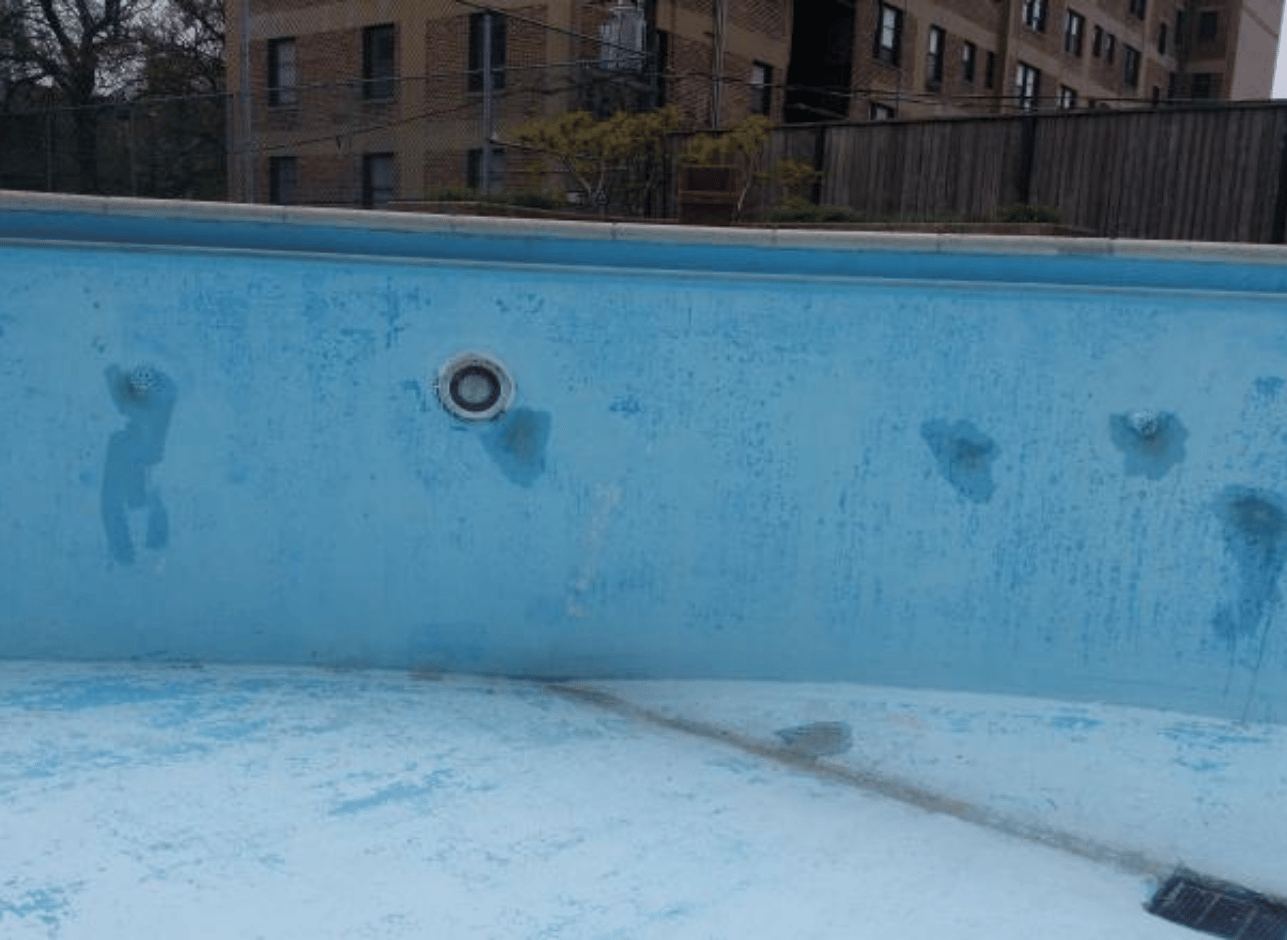

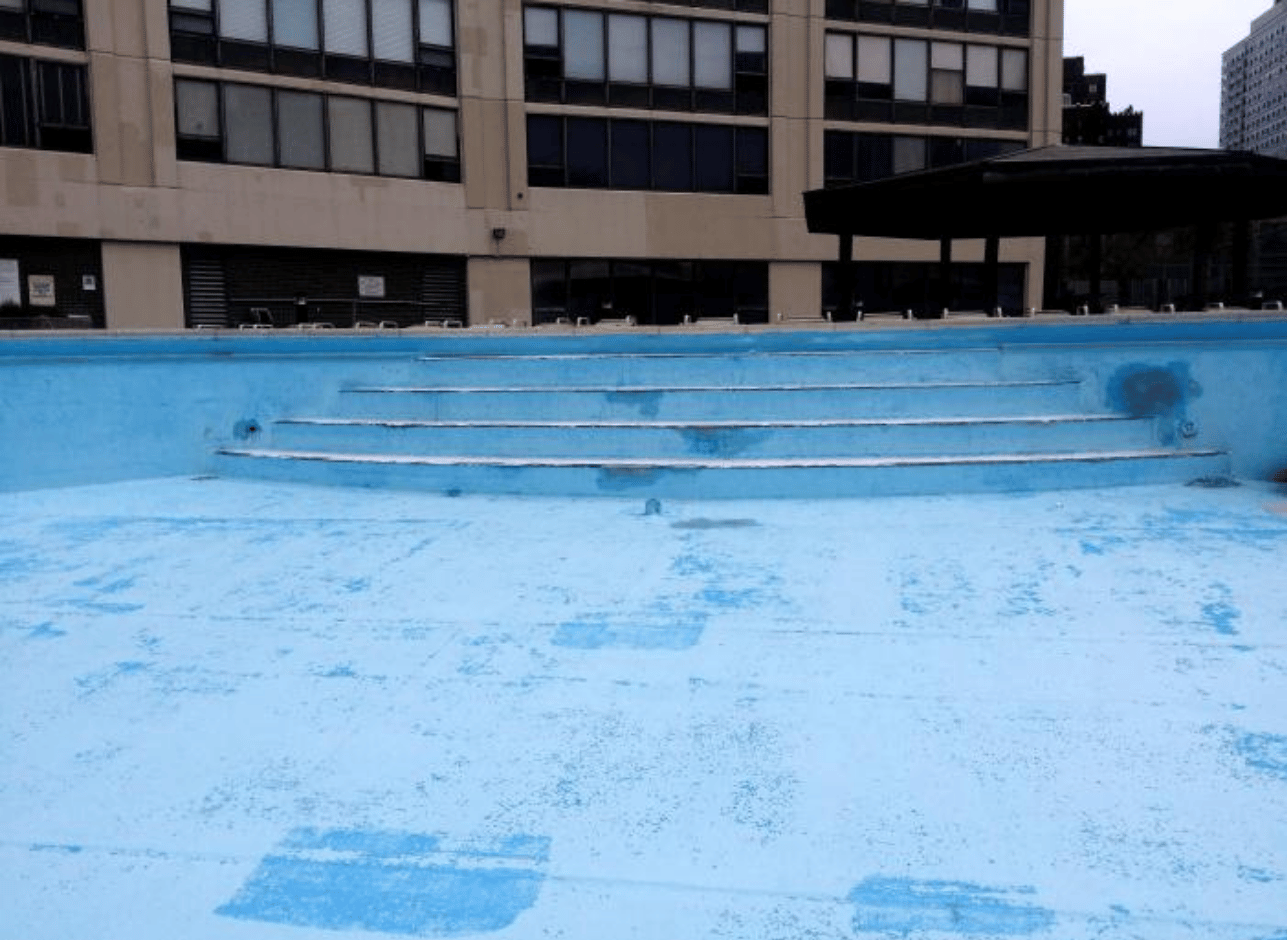

  • Mottled Aesthetics:  Years of chipped, peeling, and mottled paint had left the pool with a neglected appearance that detracted from the condominium's amenities.

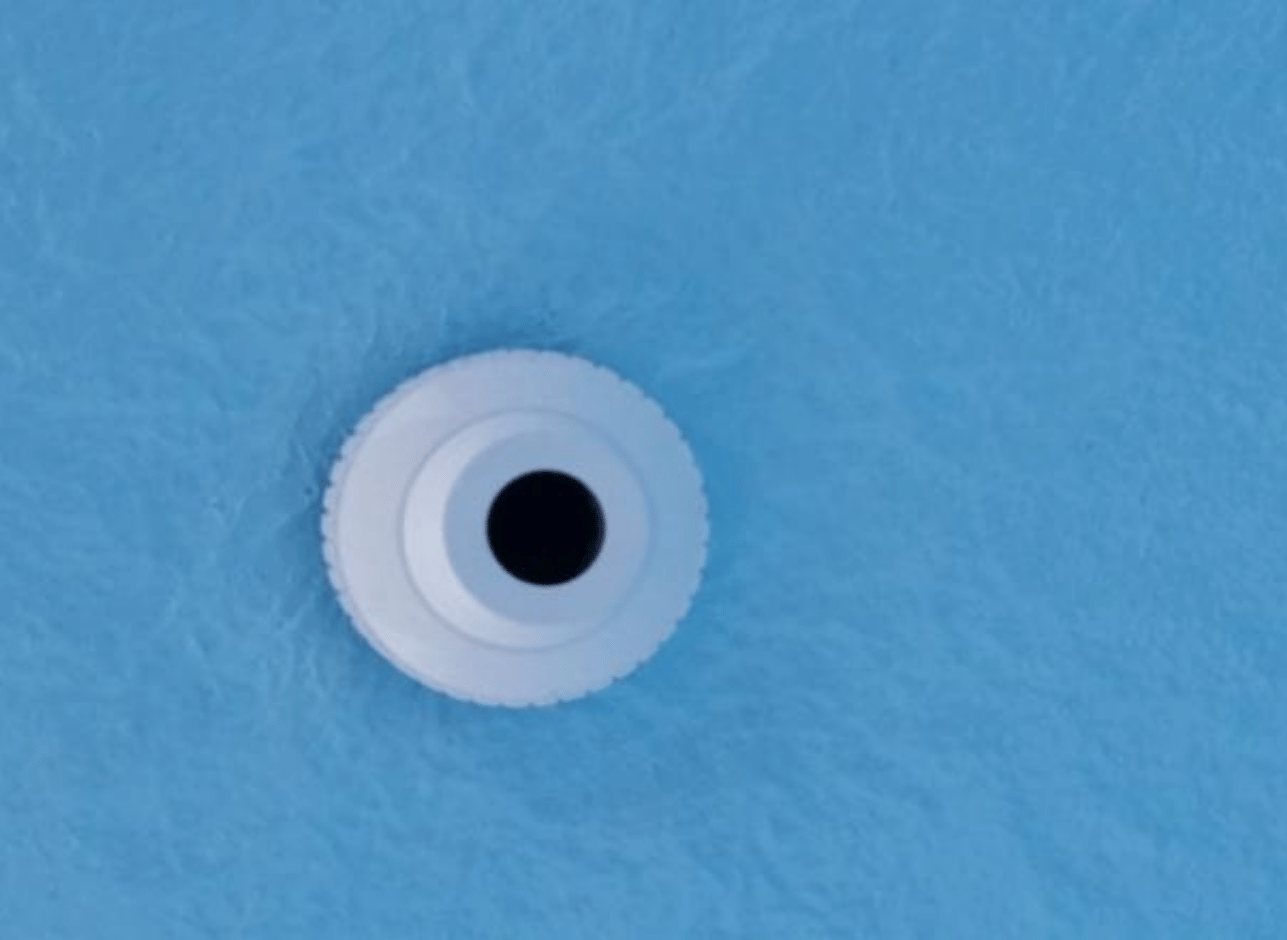

  • Infrastructure Obsolescence:  As part of the structural update, the original return line inlets were updated to ensure better flow and modern performance.

Special Considerations

  • Surface Monitoring Requirements:  Metal pool surfaces require periodic inspections to ensure structural integrity; the team avoided PVC membranes, which "hide" the surface and allow corrosion to proceed unnoticed from trapped water.
  • High-Rise Logistics:  Because the pool is located in a roof-top/above-grade setting, all material delivery and debris removal had to be coordinated for a dense urban environment.
  • Industrial Standard Preparation:  Following ISO 8501-1:2007 (Swedish Standards), all foreign matter was removed via high-pressure water jetting to ensure a pristine surface for bonding.

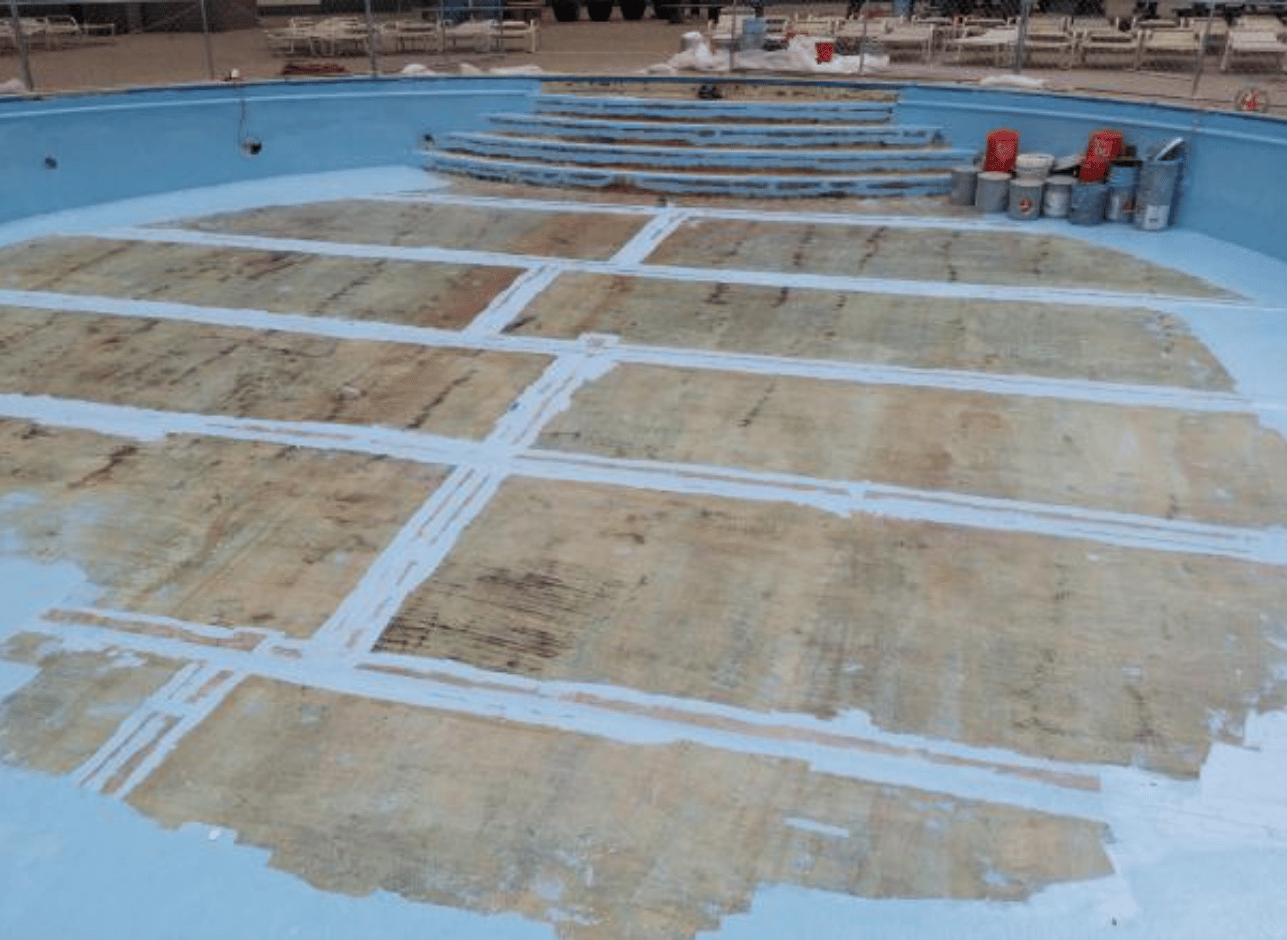

  • Multi-Stage Protective Barrier:  The shell received a heavy Zinc-enriched coating followed by multiaxial fabrics to provide a robust, corrosion-resistant foundation for the final finish.

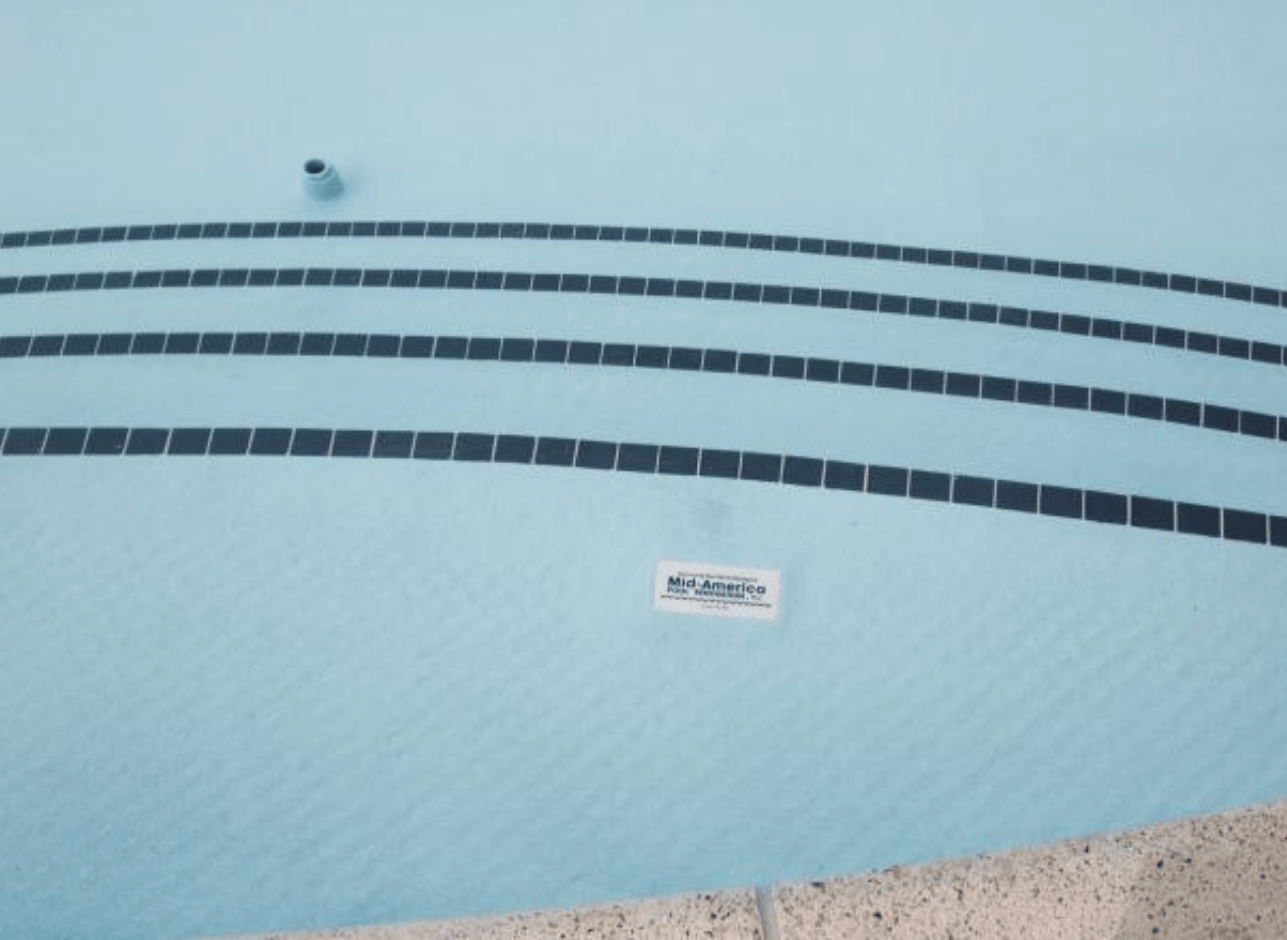

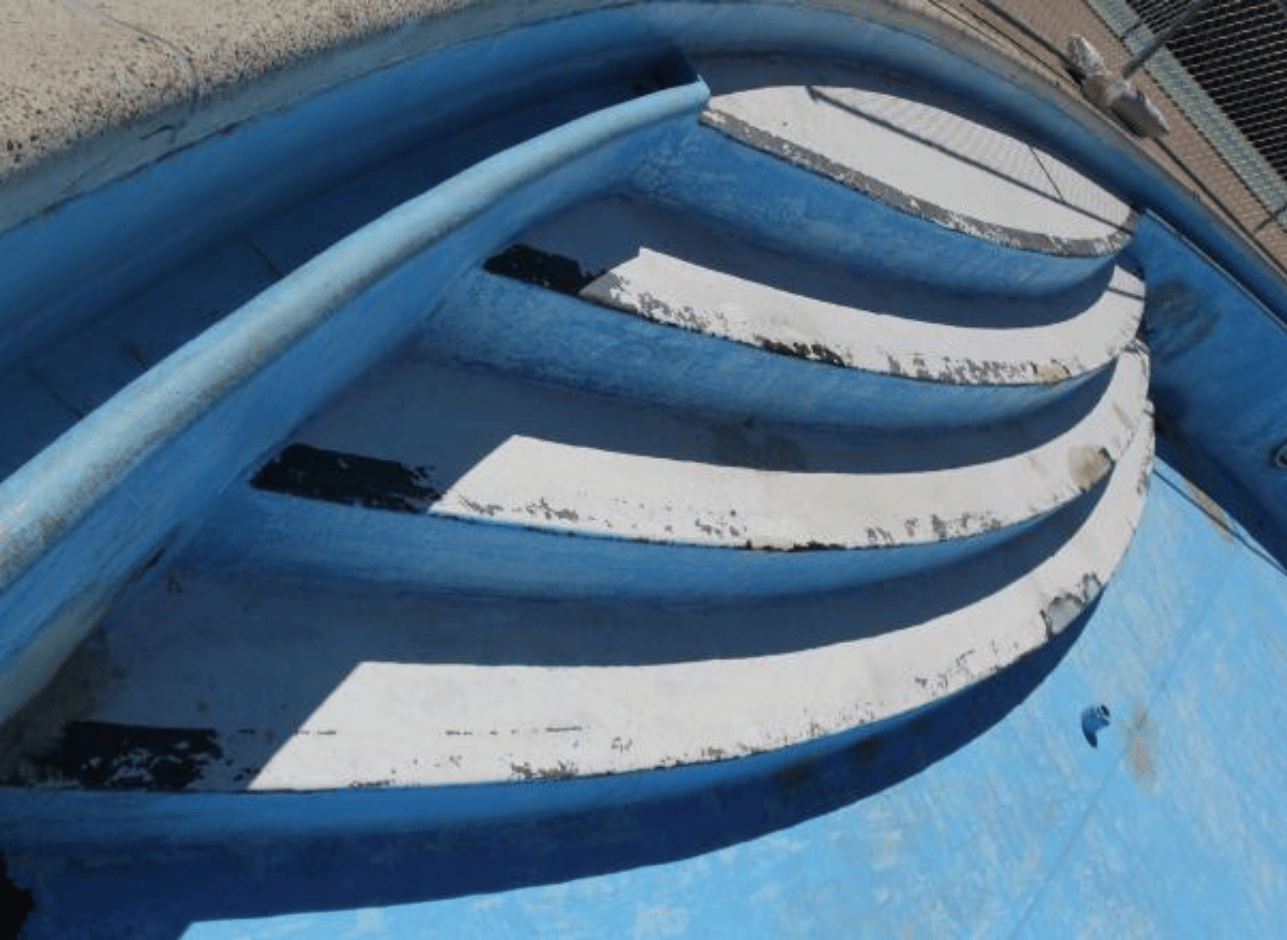

  • Restored Safety Features:  The entry steps were fully restored and outfitted with new tiled edge markings to improve visibility and swimmer safety.

From Our Team

“A PVC membrane or liner should never be used [on a metal pool]. Completely hiding the surface, periodic inspections cannot take place while corrosion may continue under the membrane from entrapped water.”
