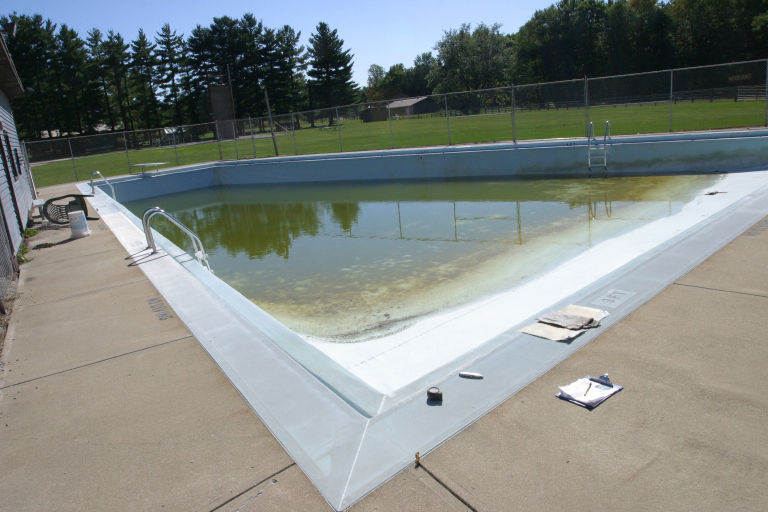

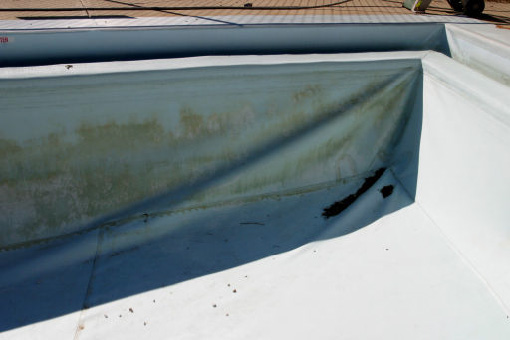

Several years ago, the camp owners of this large outdoor, shot-creted and plastered pool opted to install a PVC Liner. After some years of use, the liner began exhibiting unappealing traits such as folds, discolor- ation, and pinholes resulting in tears and water loss.
Moisture and condensation that transport through the liner and seep up through the pool shell by hydro static pressure became trapped. Yearly cycles of trapped freeze / thawed water damaged the plaster and concrete surface under the liner, resulting in tearing apart layers of the subsurface and demonstrating how damage and corrosion beneath an unbonded sheet lining can proceed unnoticed for several years. Structure cracks also affected the pool shell.

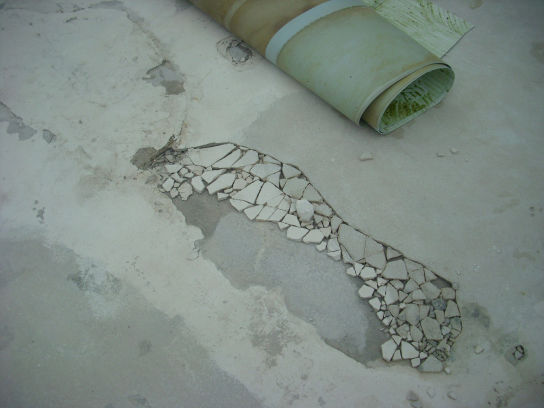

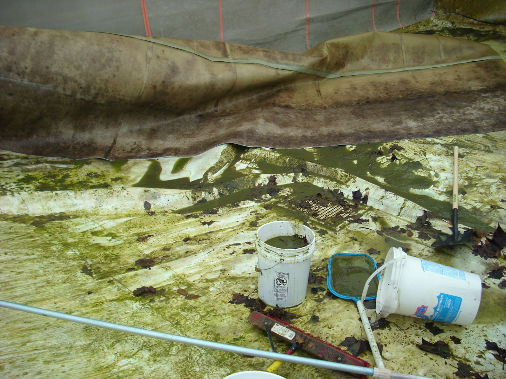

The deteriorated liner and disintegrating, contaminated felt material under the liner were cut apart and removed. Chunks of plaster and concrete damaged by being trapped under the liner through several years of freeze/ thaw cycling were removed. Following high water pressure blasting (>5000 psi), and setting up hydrostatic water pressure relief by diaphragm pumping, all the structure cracks were permanently sealed with a high- grade epoxy sealant and InterSteel. Finally, the entire pool received the INTER-GLASS® Reinforced Composite System that included a frost-proof tiled depth transition line.
Project Specifications:
Total Square Feet: 4,640
Pool Shape: Large Wedge
Type of Circulation: Concrete Gutters
Type of Construction: Shotcrete w/Plaster Lining Covered By PVC Liner Type
Type of Finish after Renovation: inter-glass®
