Quality Inn

Belton, MO

PVC Membrane Conversion to White INTER-GLASS® Interior

Project Assessment
“What needed to be done”

This Quality Inn pool was originally constructed with galvanized walls, a vermiculite floor pool, and fiberglass molded entry steps.  The pool was then covered with a vinyl liner. A few years after construction, the vinyl liner ripped, folds in the liner began to appear throughout the pool, and naturally the pool lost a significant amount of water through the unsealed or protected pool floor. Unable to open the pool or pass inspections, the Owners searched for a permanent solution to the problems the pool was experiencing.  They chose to have the INTER-GLASS® Reinforced Polymeric System installed, thereby transforming the pool to appear as a one-piece solid structure.

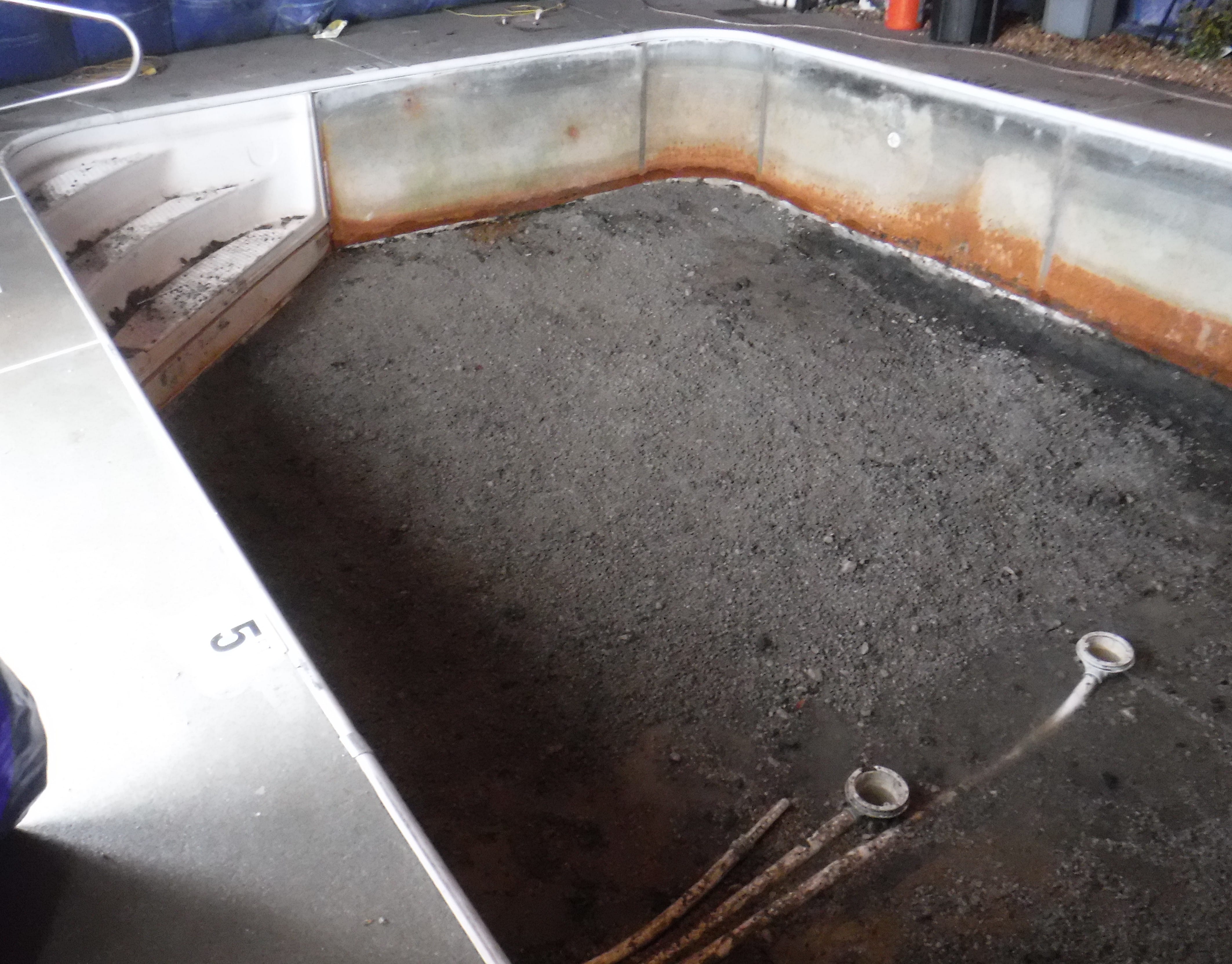

Deteriorated Vermiculite

RENOVATION PLAN
“How it was done”

This Project was done in the winter of 2019, leaving a challenge of working through cold weather and particularly snow.   Tearing the liner out exposed a badly deteriorated and crumbling vermiculite floor, and a steel wall surface covered with rust and badly pitted.  To maintain the 3FT – 5FT depth of the pool, the vermiculite was dug out by hand to accommodate a new 4” deep gravel base, reinforcing steel and an 8” concrete floor. Holes were drilled through the base of the steel walls and into the supporting concrete beam.
Pre-formed steel bars were epoxied into the concrete beam supporting the steel walls, followed by #4 reinforcement on a 12” on centers grid.  Once the steel was in place and securely Bonded, a concrete floor was laid.  The pool walls were sandblasted with silica sand to the ‘Very thorough blast cleaning’ ISO Sa 2-1/2 Standard, and immediately coated with a Zinc rich resin to prevent flash rusting.  Ceramic waterline tiling was installed, followed by installation of the INTER-GLASS® Reinforced Polymeric System
Project Specifications:
Total SQ. Ft:                    900 Ft²
Pool Shape:                    Rectangular
Type of Circulation:        Skimmers
Type of Construction:     Galvanized Walls / Vermiculite Floor
New Interior Finish:        PVC Membrane to INTER-GLASS®
Holes Drilled Through Steel Walls & Into Concrete Support Beam
Steel Grid Complete
Tented for Concrete Pour

Quality Inn

Belton, MO

PVC Membrane Conversion to White INTER-GLASS® Interior

Project Assessment
“What needed to be done”

This Quality Inn pool was originally constructed with galvanized walls, a vermiculite floor pool, and fiberglass molded entry steps.  The pool was then covered with a vinyl liner. A few years after construction, the vinyl liner ripped, folds in the liner began to appear throughout the pool, and naturally the pool lost a significant amount of water through the unsealed or protected pool floor. Unable to open the pool or pass inspections, the Owners searched for a permanent solution to the problems the pool was experiencing.  They chose to have the INTER-GLASS® Reinforced Polymeric System installed, thereby transforming the pool to appear as a one-piece solid structure.

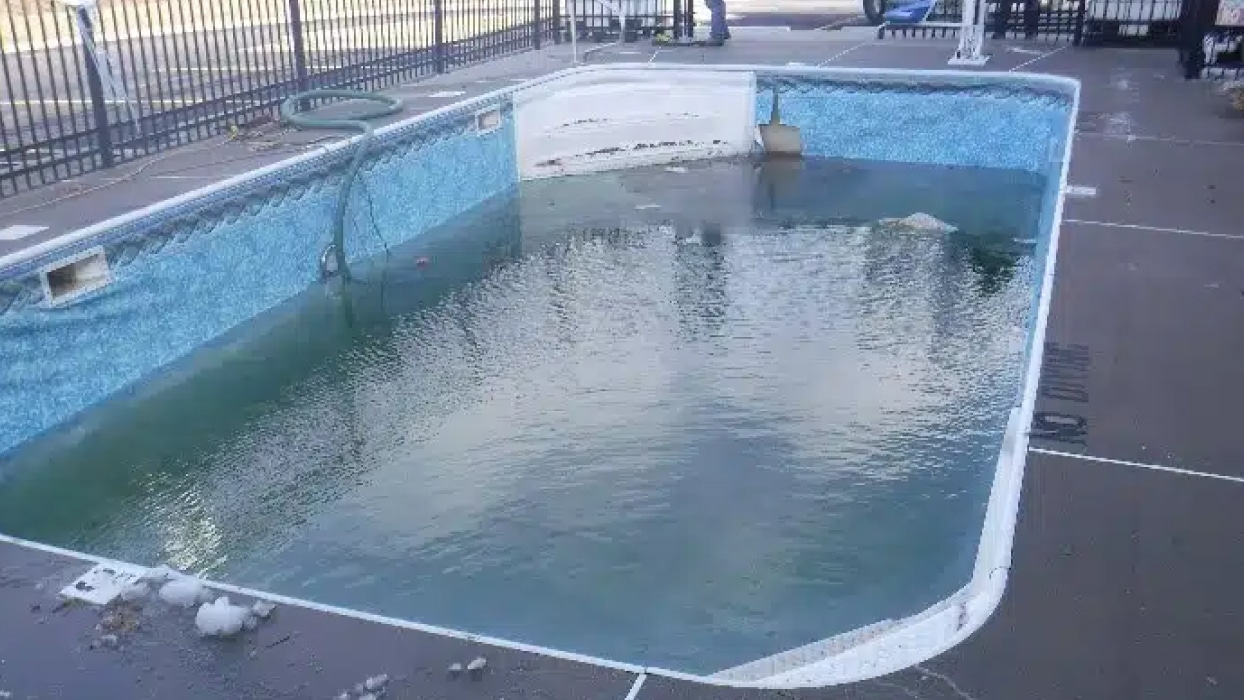

Before - Torn PVC Membrane

RENOVATION PLAN
“How it was done”

This Project was done in the winter of 2019, leaving a challenge of working through cold weather and particularly snow.   Tearing the liner out exposed a badly deteriorated and crumbling vermiculite floor, and a steel wall surface covered with rust and badly pitted.  To maintain the 3FT – 5FT depth of the pool, the vermiculite was dug out by hand to accommodate a new 4” deep gravel base, reinforcing steel and an 8” concrete floor. Holes were drilled through the base of the steel walls and into the supporting concrete beam.
Deteriorated Vermiculite
Pre-formed steel bars were epoxied into the concrete beam supporting the steel walls, followed by #4 reinforcement on a 12” on centers grid.  Once the steel was in place and securely Bonded, a concrete floor was laid.  The pool walls were sandblasted with silica sand to the ‘Very thorough blast cleaning’ ISO Sa 2-1/2 Standard, and immediately coated with a Zinc rich resin to prevent flash rusting.  Ceramic waterline tiling was installed, followed by installation of the INTER-GLASS® Reinforced Polymeric System.

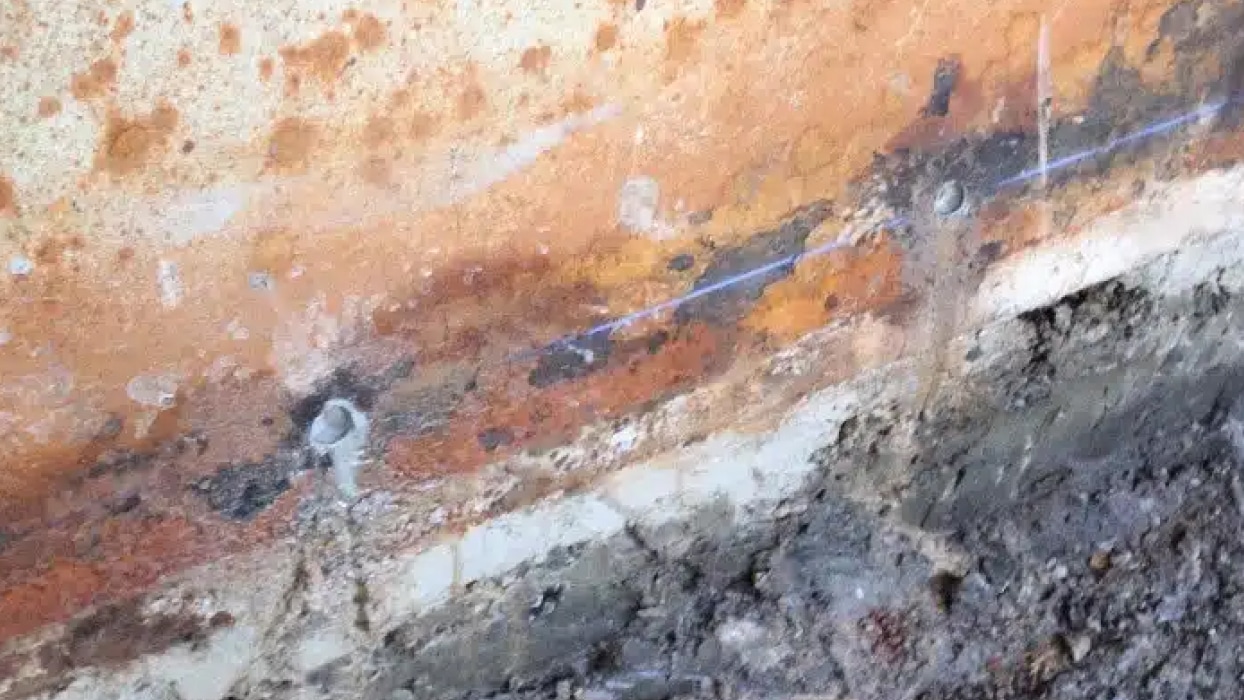

Holes Drilled Through Steel Walls &
Into Concrete Support Beam

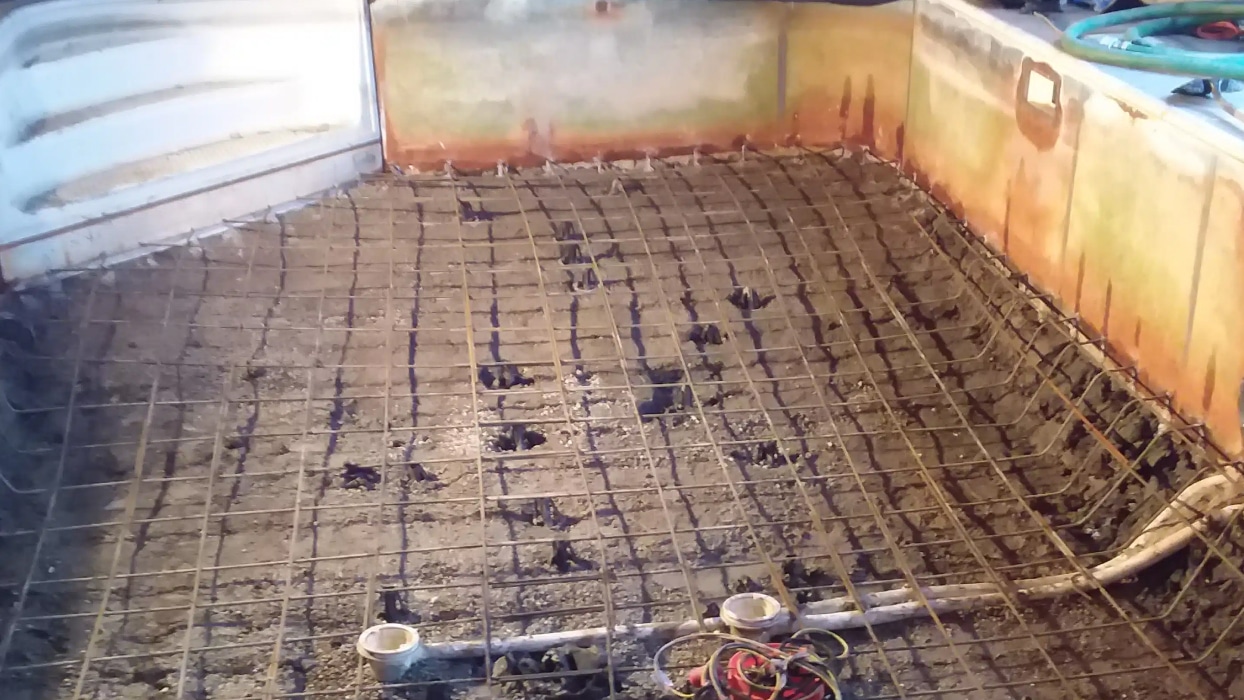

Steel Grid Complete & Tied to Walls
Tented for Concrete Placement
Project Specifications:
Total SQ. Ft:                 900Ft²
Pool Shape:                 Rectangular
Type of Circulation:    Skimmers
Type of Construction: Galvanized Walls / Vermiculite Floor
New Interior Finish: INTER-GLASS®
